Create a pfSense Firewall for Our Proxmox Lab

I don’t have anything significant to add to 0xBEN’s excellent write-up.

Although setting up firewall rules seems like a daunting ordeal, and the number of tasks seem large, the process and logic should feel familiar to those who have previously set up a HomeLab using VirtualLab or VMware.

Tasks include:

  • System Setup
  • Give your pfSense VM a Static DHCP Reservation
  • Double Check the Options
  • Install and pfSense Initial Setup
  • Configure VLANs
  • Configuring Interface IP Address Ranges
  • Configuring the System Settings
  • Logging in and Setting Up
  • Hostname and Domain
  • DNS Settings
  • NTP Server
  • Configure the WAN Interface
  • Configure the LAN Interface
  • Permanent Access via WAN IP
  • Disable the Firewall Again
  • Add a WAN Rule
  • Finalize System Setup
  • Set up Firewall Rules
  • Create Firewall Aliases
  • Create an Alias for RFC1918
  • Create an Alias for Kali
  • WAN Firewall Rules
  • LAN Firewall Rules
  • SEC_EGRESS Rules
  • SEC_ISOLATED Rules
  • Configure the DNS Resolver Service
  • Adding Additional VLANs to the Cyber Range

DEVIATIONS FROM 0xBEN

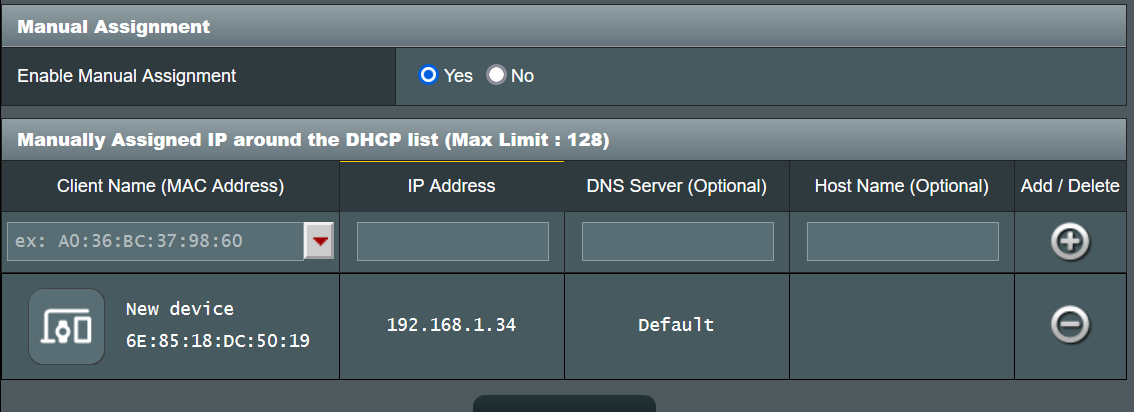

Reserving an IP address via home router: static ip

Allow SEC_ISOLATED LAN to Kali VM

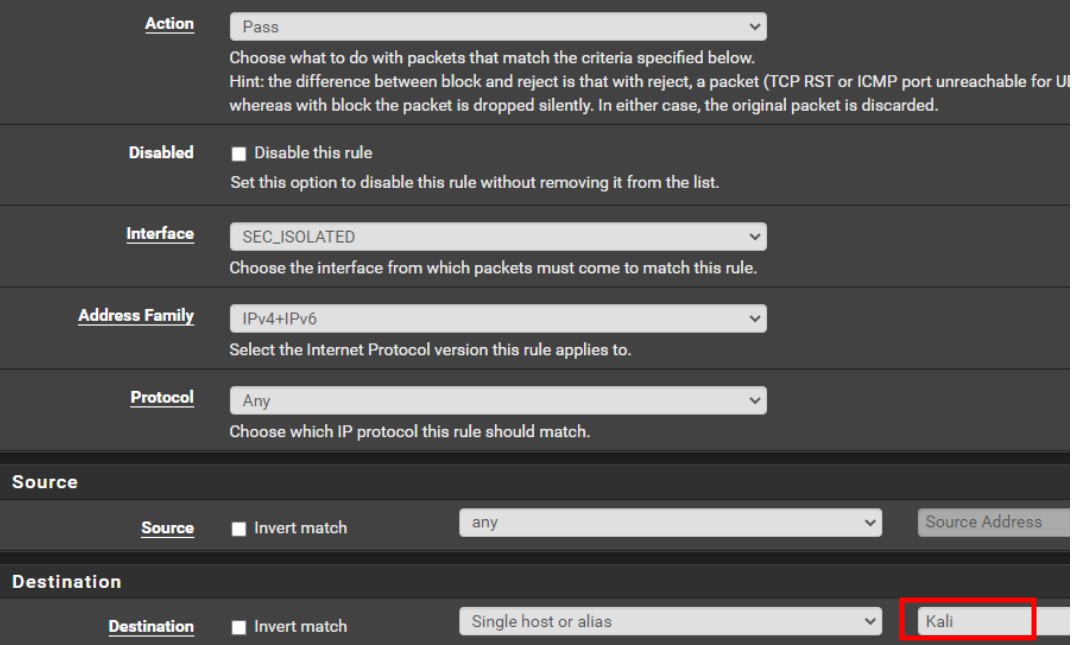

  • in first example, can see added Kali as a destination kali in

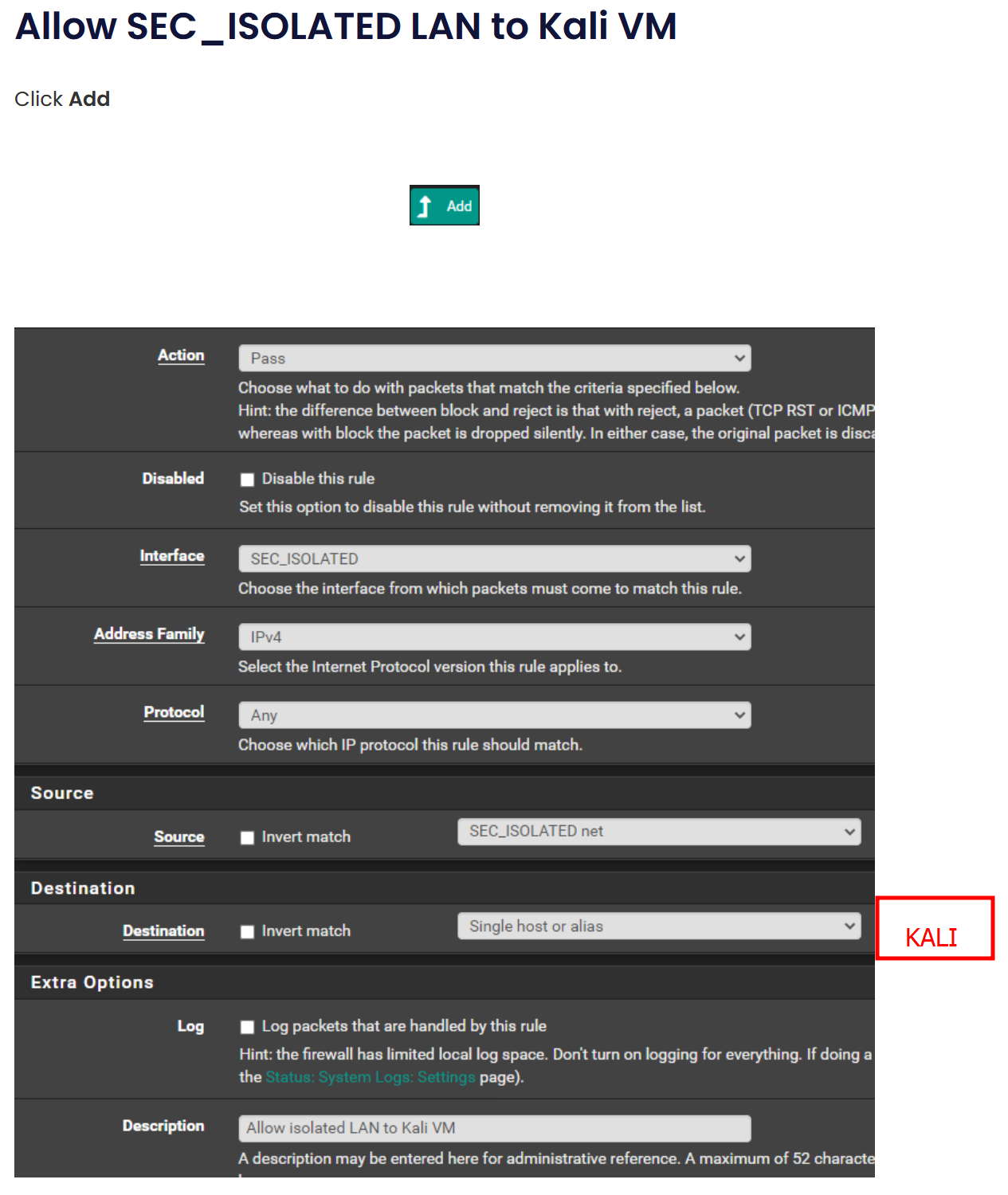

  • but it was cut off in a second example kali missing
