One Last Section!

In addition to joining our Windows Client machines to the domain, there are just a few more steps we need to do after the machines are on the Domain:

  • Join Our Machines to the domain
  • Add a LOCAL Administrator account to each Client
  • Add DOMAIN Administrator account(s) to each Client
  • Turn on Network Discovery
  • Map “hackme” as a Network Drive to Spiderman.

Joining Our Machines to the Domain

I am only going to demonstrate this process on one of the VMs.

  • Follow along and repeat this process on any other clients you want to join to the domain.

Log into one of the VMs using the template credentials we created earlier.

  • Start Menu > Search This PC > Right-click > choose Properties

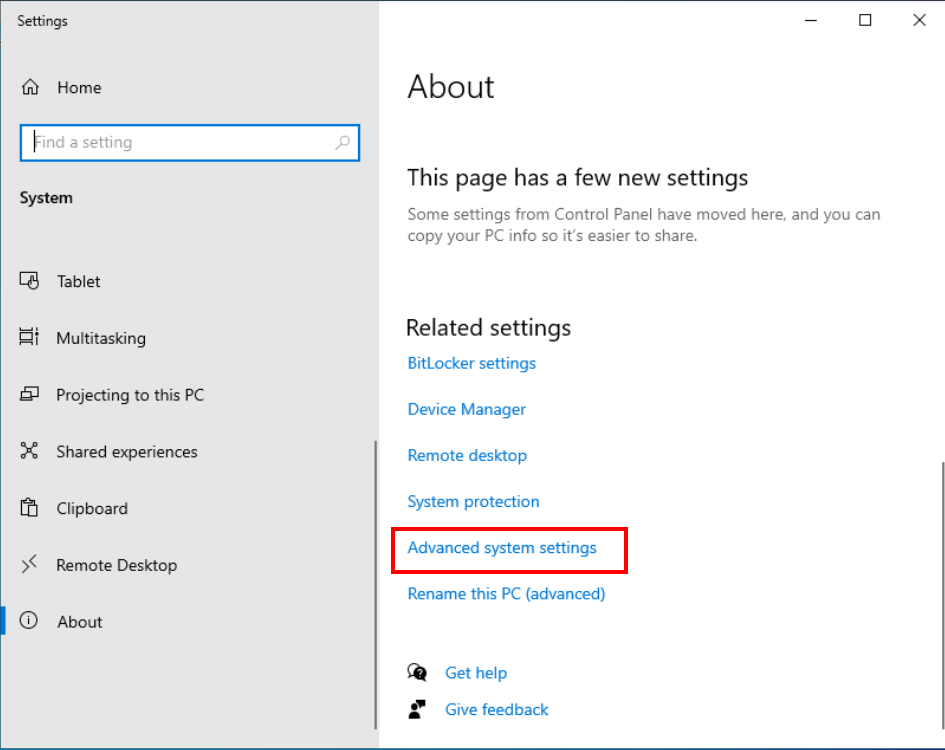

Go to Advanced System Settings joi2

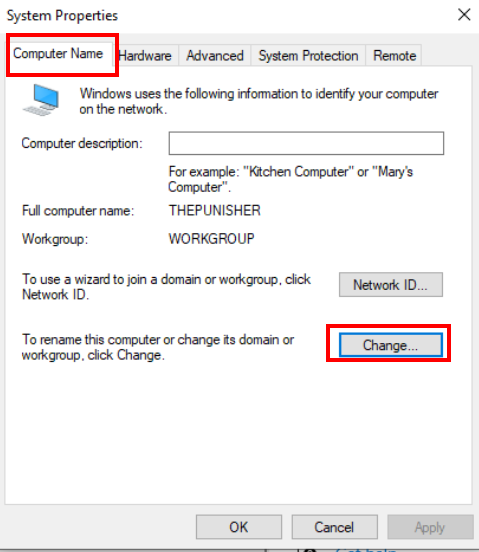

Click on Computer Name

  • Note: We had previously named the computer already
  • Click Change joi3

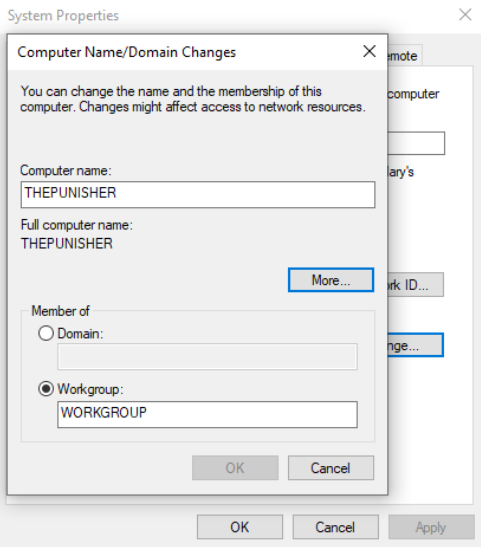

Click More joi4

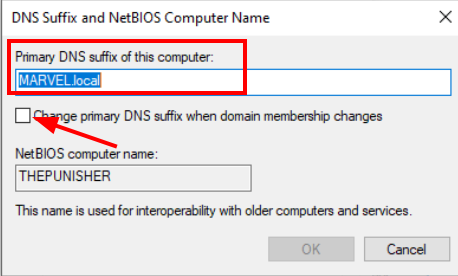

Set the DNS suffix to match your domain forest.

  • Uncheck the box
  • Change the computer name if you missed this step in the last post
  • Click OK joi5

Back on the previous panel

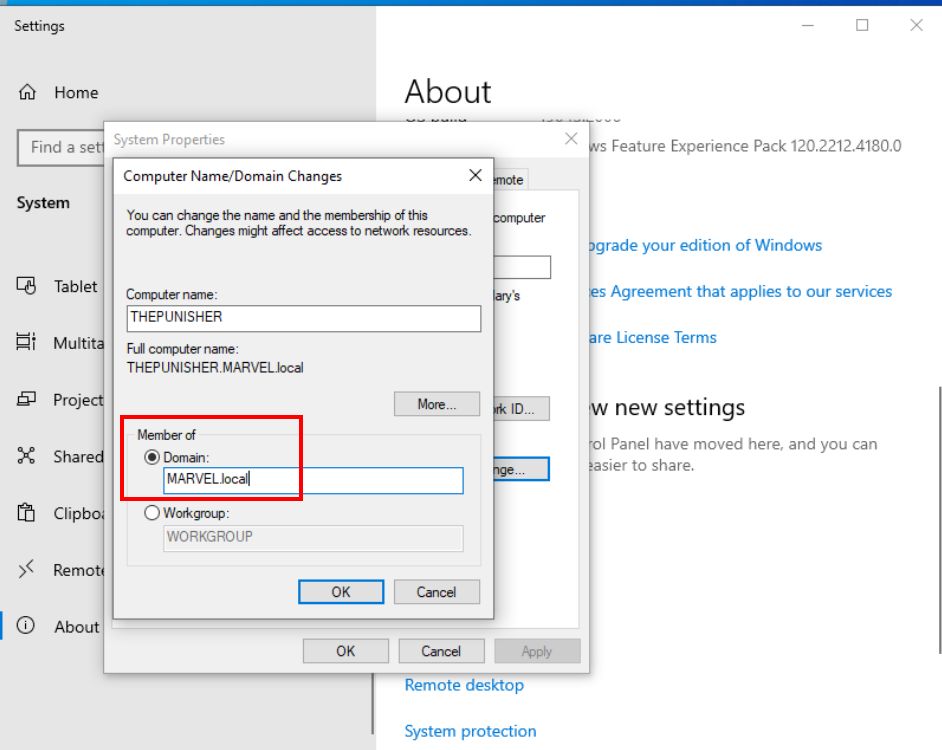

  • Choose Member of domain and set it to your domain forest ie. MARVEL.local joi6

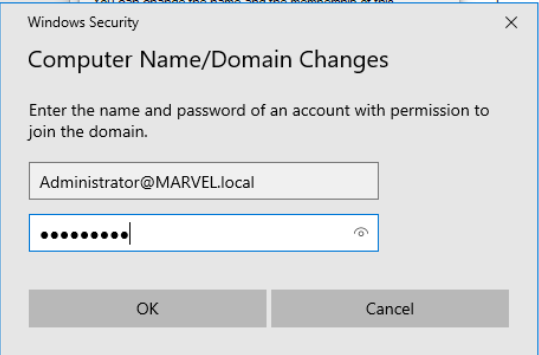

You will get a prompt.

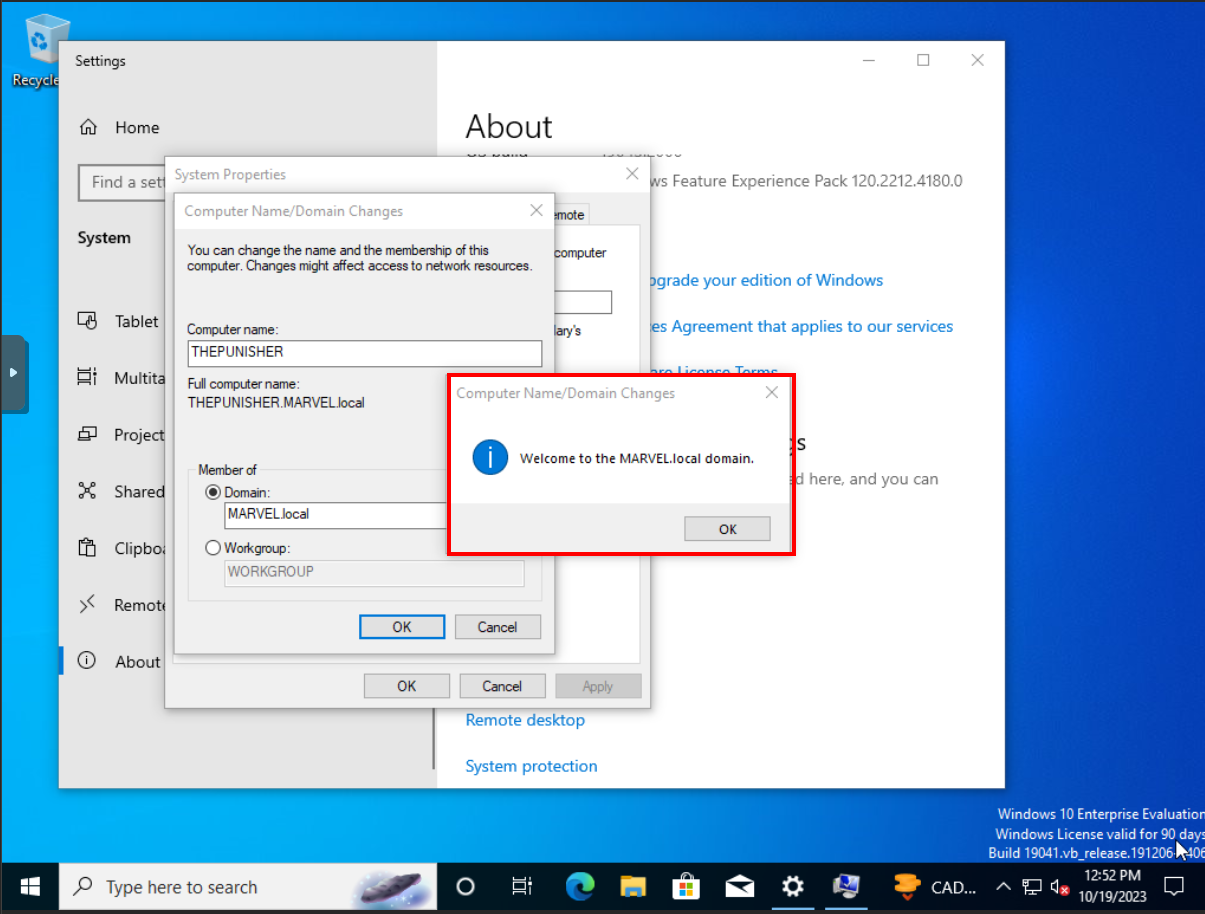

Success! joi8

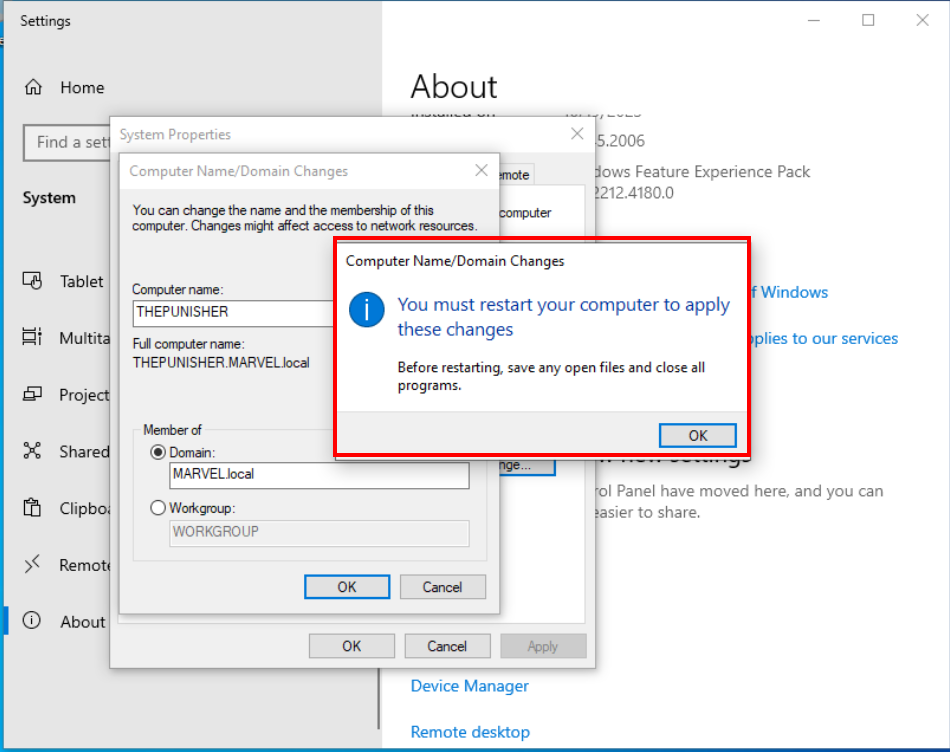

You can reboot the VM, and can login with any of the Domain accounts too. joi9

Repeat the process for the other Windows 10 client.

Add Local Administrators to Windows Clients

Log in to THEPUNISHER as MARVEL\administrator

  • The first time you log in may take a few minutes

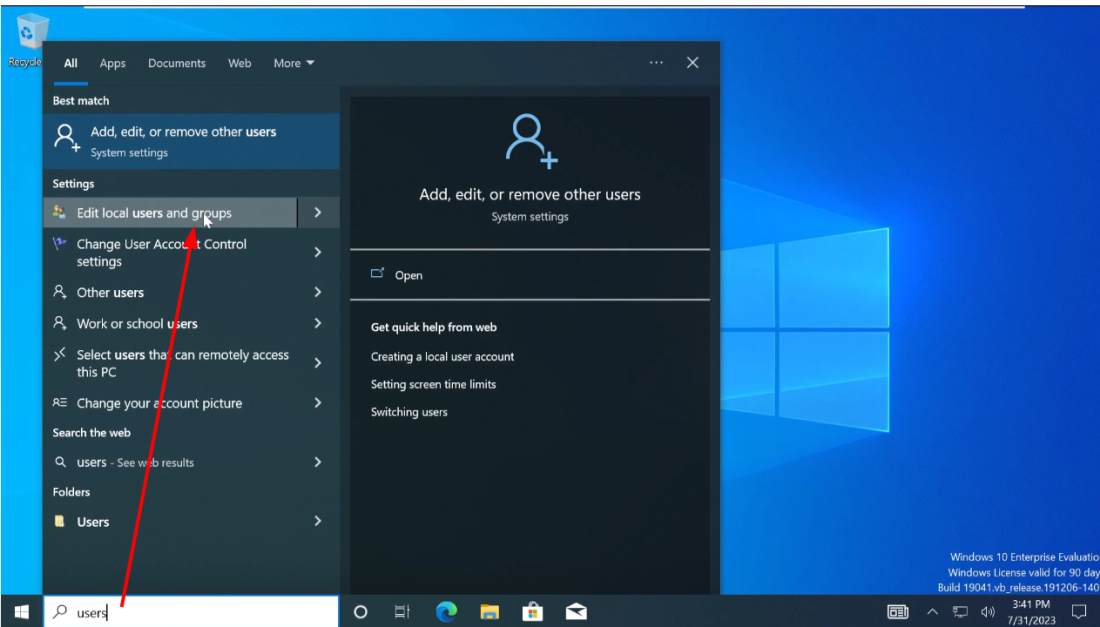

Search “Users” > Edit local users and groups > Users fin1

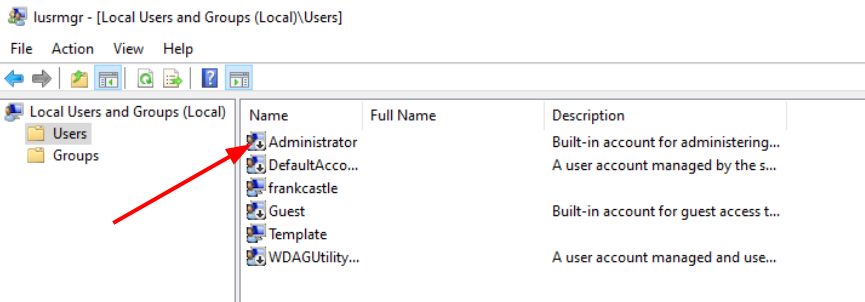

You see a local Administrator account, that has not been activated (see the symbol)

  • frankcastle: this is NOT the Domain fcastle account
  • Template: used to set up initial Template fin2

Enable the local Administrator account

  • Right-click > Set Password > Proceed > Password1!
  • Right-click > Properties > Uncheck “Account is disabled”
  • Best Practice: This local administrator account SHOULD NOT be enabled, but this is a common occurrence in production environments

Add MARVEL\fcastle to Administrator Group

Local Users and Groups > Groups > Administrators (Local)

  • See who are members of this group
  • frankcastle is a member
  • Add MARVEL\fcastle and MARVEL\Administrator

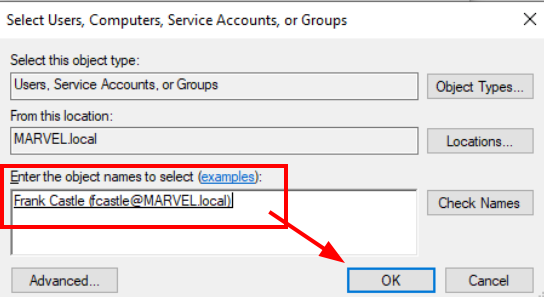

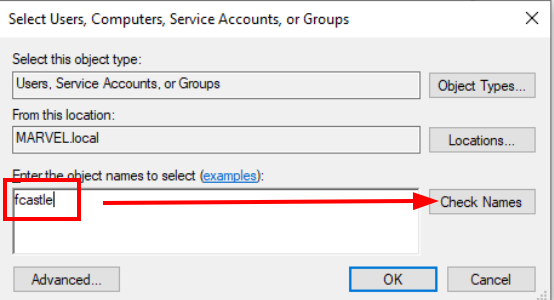

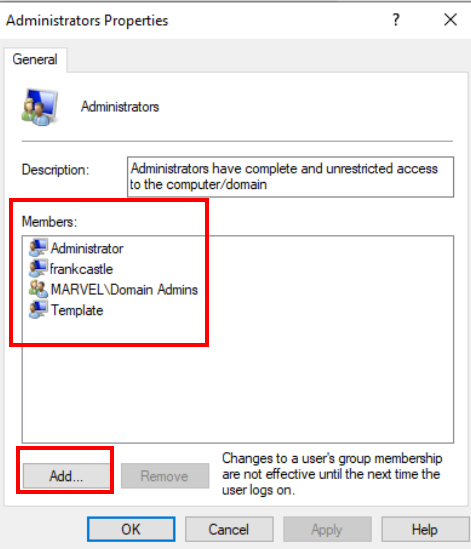

Double-click Administrators > Add > Enter “fcastle” > Check Names > OK > Apply

  • repeat to add MARVEL\administrator fin3 fin4 fin5

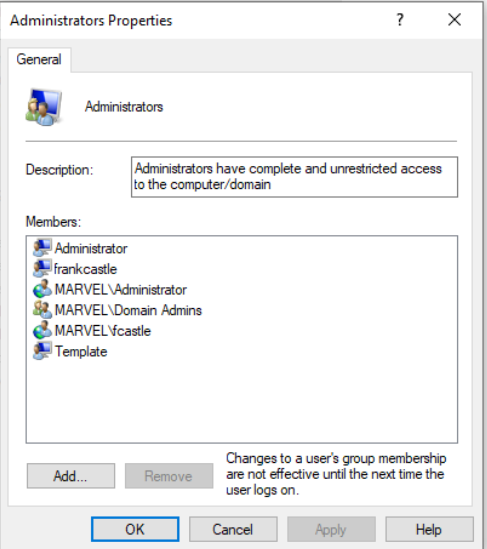

Make sure you have Applied these changes. Check final list of Administrators: fin6

Turn on Network Discovery

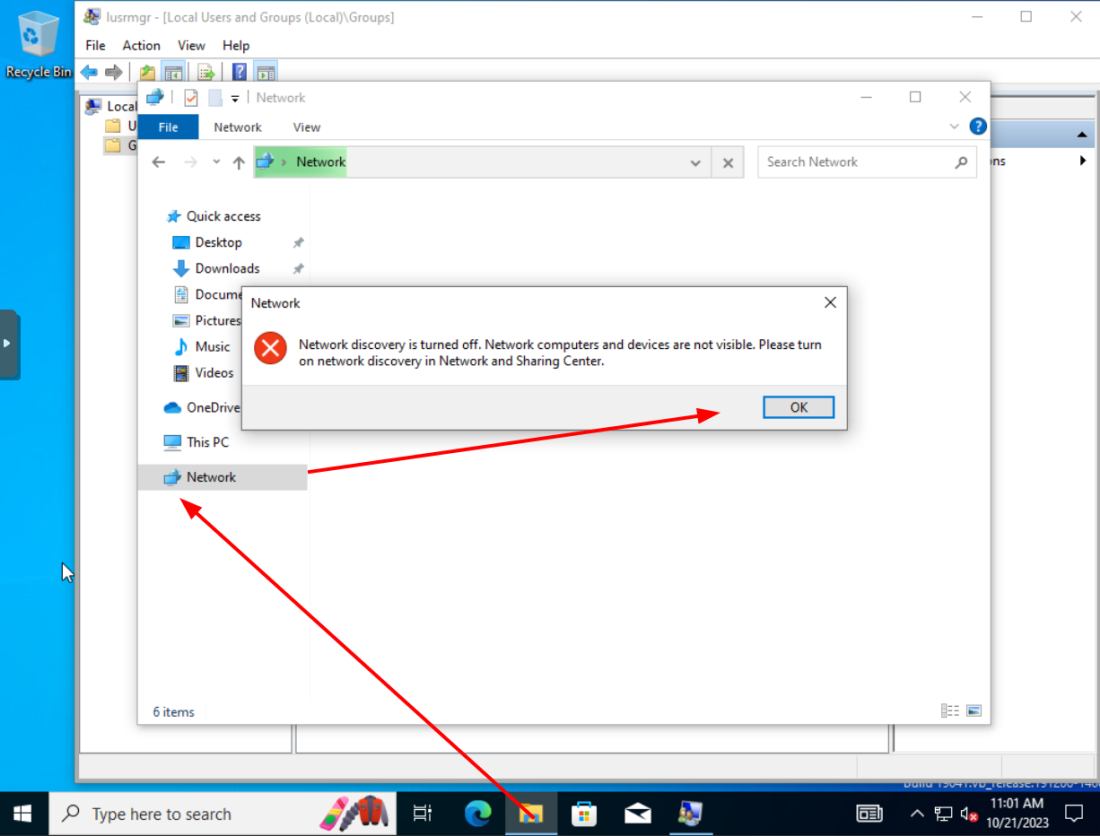

File Explorer > Network > OK fin7

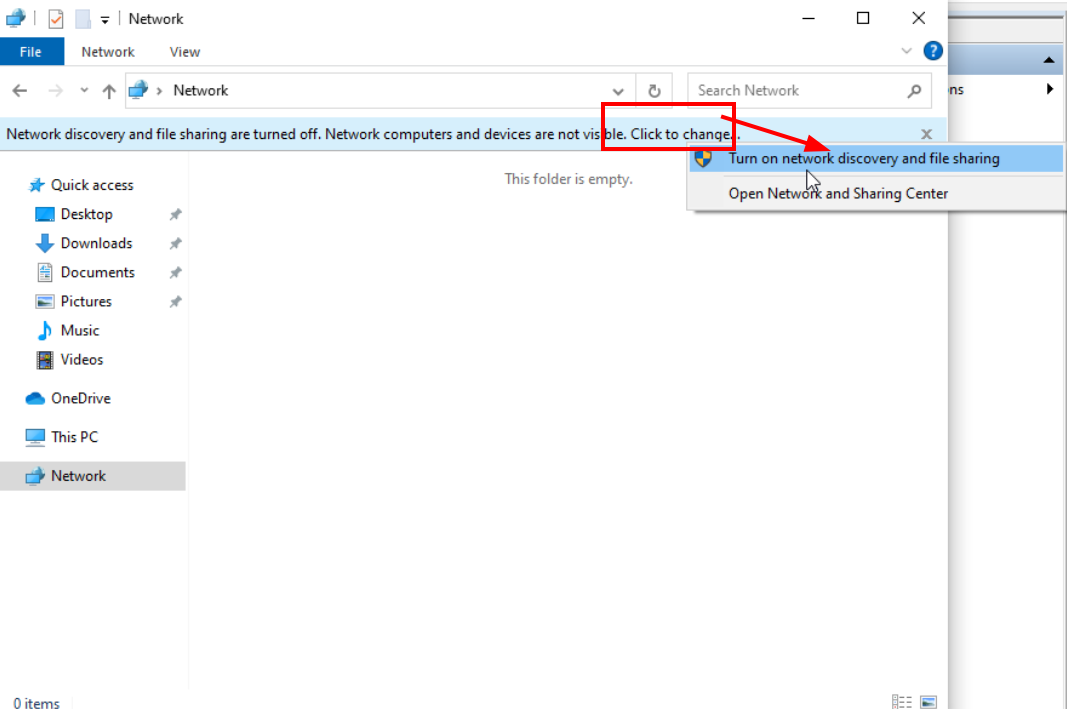

Click to Change > Turn on network discovery and file sharing

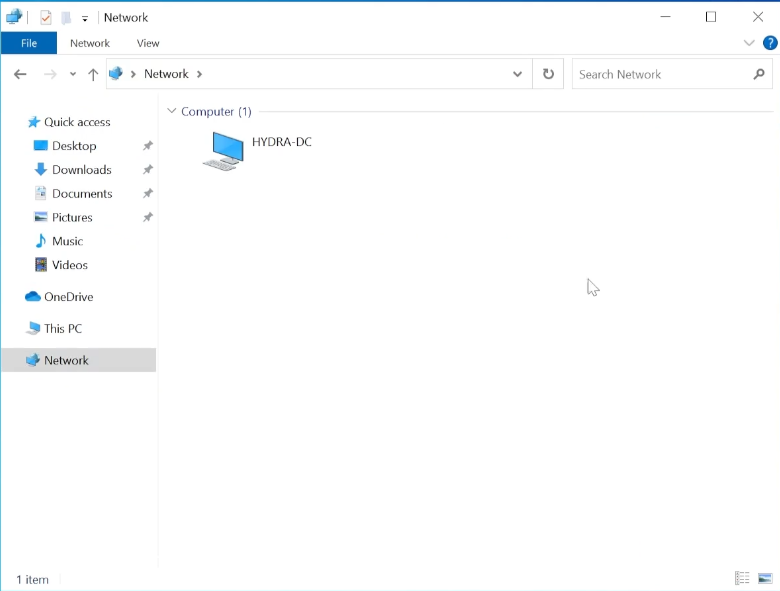

  • Should see HYDRA-DC fin8 fin9

NOTE: This did not automatically find HYDRA-DC; however, if you manually enter the unc (universal naming convention paths, used to access network resources) path name: *\HYDRA-DC* it will become visible

  • The format is: *\<server or hostname<path or sharename>*

Complete Settings on SPIDERMAN

Add Local Users and Groups (Local)

Login as a Domain Administrator

  • Users - Administrator: Set Password, Enable account Use identical password for both machines
  • Groups: Add pparker and fcastle and MARVEL\administrator

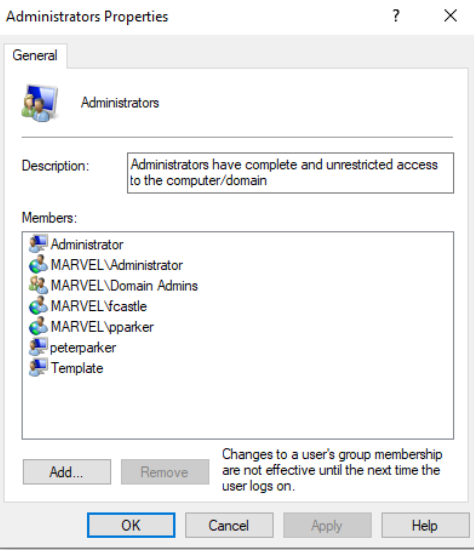

NOTE:

  • SPIDERMAN has pparker AND fcastle (domain users) as LOCAL administrators
  • THEPUNISHER only has fcastle (domain user) as a LOCAL administrator fin10

Turn on Network Discovery

  • Check can see HYDRA-DC

Enable hackme as a shared drive for LOCAL accounts

Currently, “hackme” can be seen if a Domain user is logged in

  • We want this accessible for a Local account - bad idea, but it happens

Log in as a a LOCAL user, not into the domain

  • .\peterparker:Password1

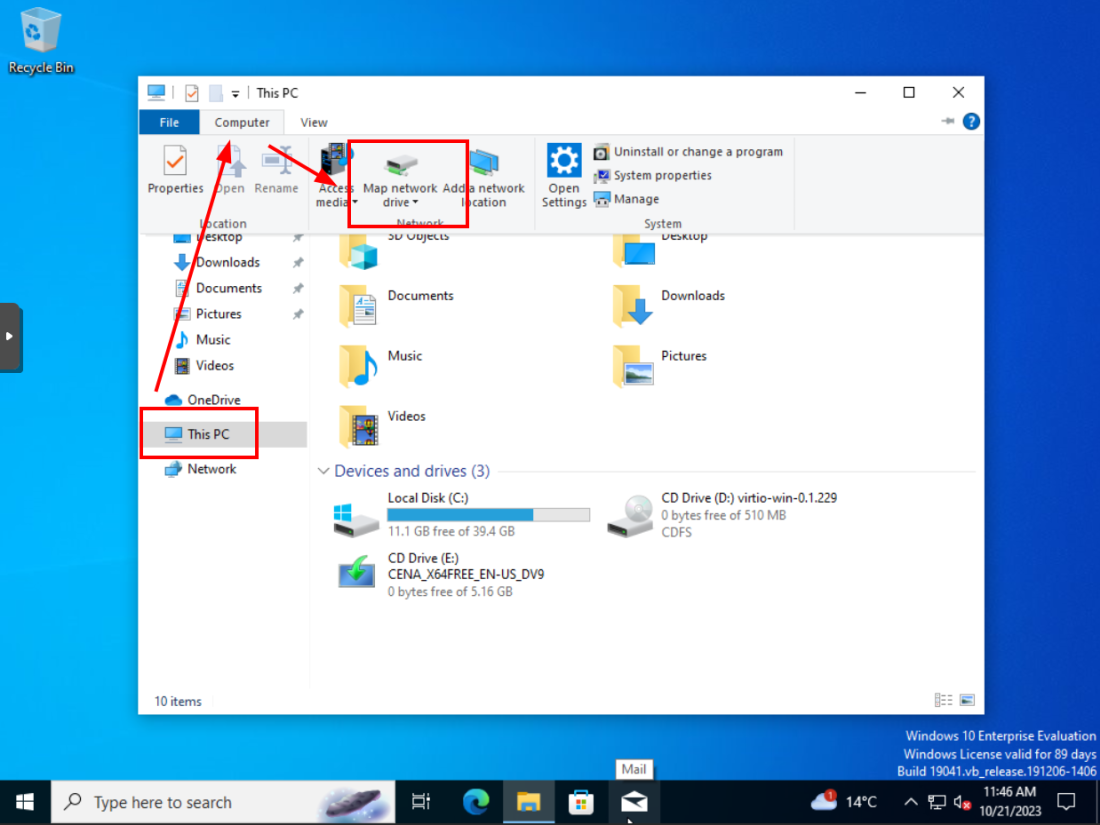

  • This PC > Computer > Map network drive fin11

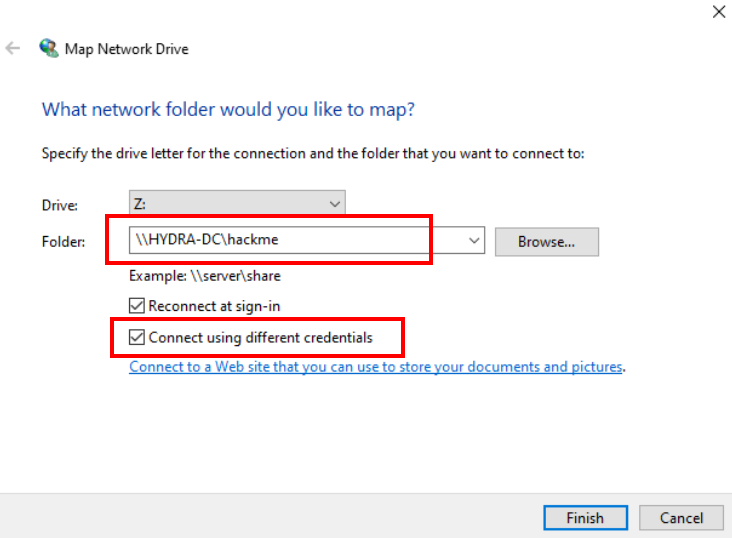

Map the “hackme” folder:

  • Folder: \HYDRA-DC\hackme

  • Enable “Connect using different credentials” - remember, we logged in as a Local user, that does not have access to the Domain or DC - we will have to use Domain Admin credentials to enable access to “hackme” fin12

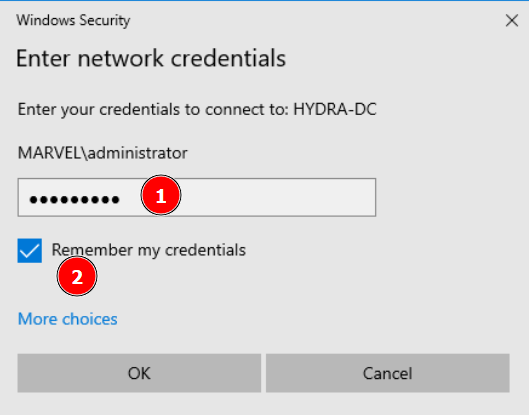

  • Enter credentials for a DOMAIN administrator account

  • Remember my credentials fin13

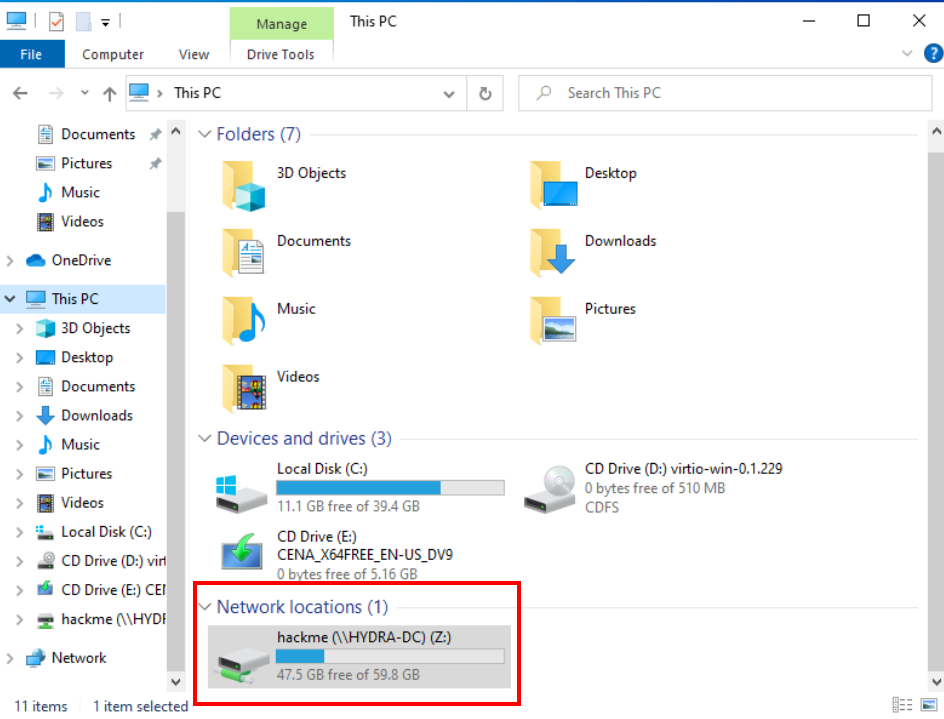

And now you will see “hackme” as a mapped network drive. fin14

Congratulations, you now have your own Active Directory Domain!

You now have a small but functional Active Directory Forest with a Domain Controller and two Windows 10 Enterprise clients.

If the VMs seem a little sluggish, you should probably increase the RAM on the VMs. Other than that, you are now ready for the next phase of your adventures.
