AD Lab VMs can ping each other, and Kali - but cannot resolve names

Possible error is the Domain Controller (DC) DNS does not match the pfSense DHCP Pool/DNS settings.

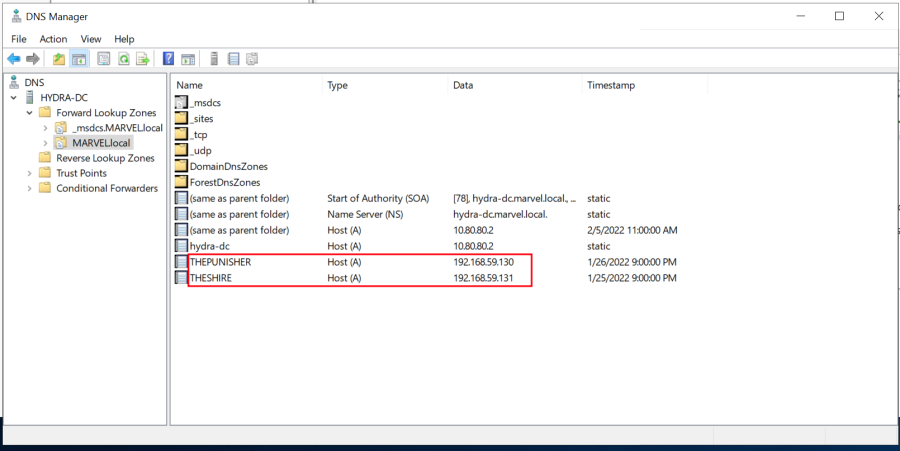

On your DC, go to your DNS Manager, and look at your Domain network ie. MARVEL.local. My two Windows 10 VMs still had their previous IP addresses: AD Old IP

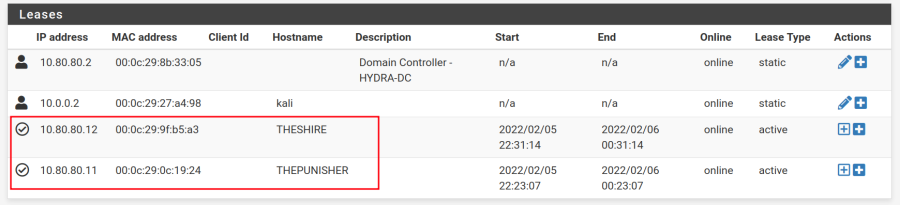

In pfSense, the two Windows 10 machines have been assigned different IP addresses, as requested, within the desired subnet: AD New IP


On your DC, go to:

Start | Settings | Network & Internet | Properties

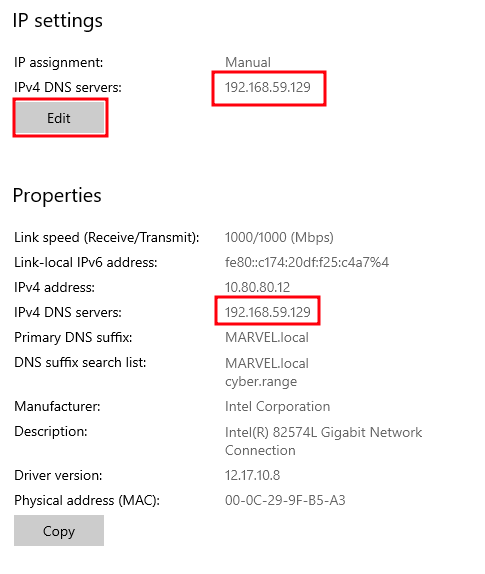

Note the DNS servers were not updated to our new desired DNS IP. Click Edit AD Wrong DNS

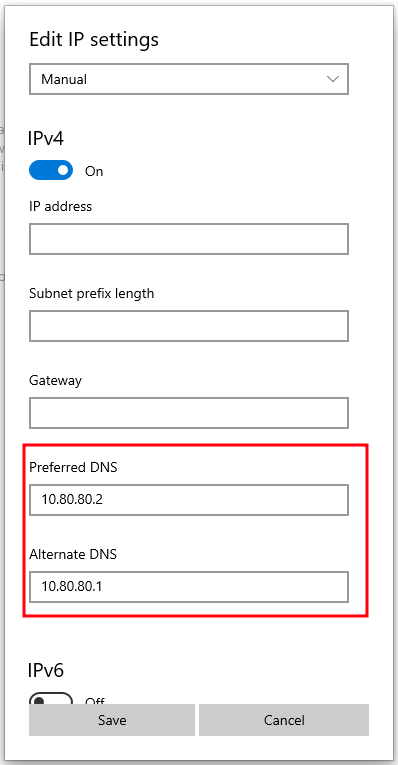

Replace the old DNS IP with and AD New DNS

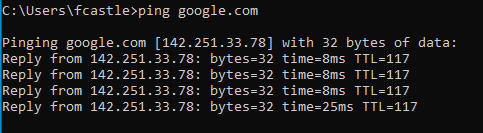

Test URL resolution with a ping: AD Ping

Domain Controller Does Not Have Internet Access

This appears to be a common issue when an Active Directory setup only has ONE Domain Controller, and it is acting as a DNS.

Solutions include:

  1. Add a second DC as a DNS - whoa - that’s too much effort
  2. Add (Google resolver) as a secondary DNS

Solution #2 is preferred, but it is a bit of a convoluated path to get there, but worked for me:

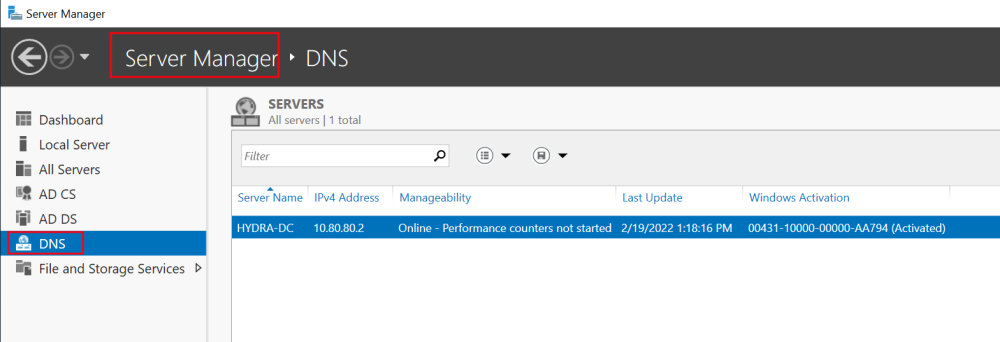

On your DC, go to Server Manger | DNS AD DC DNS

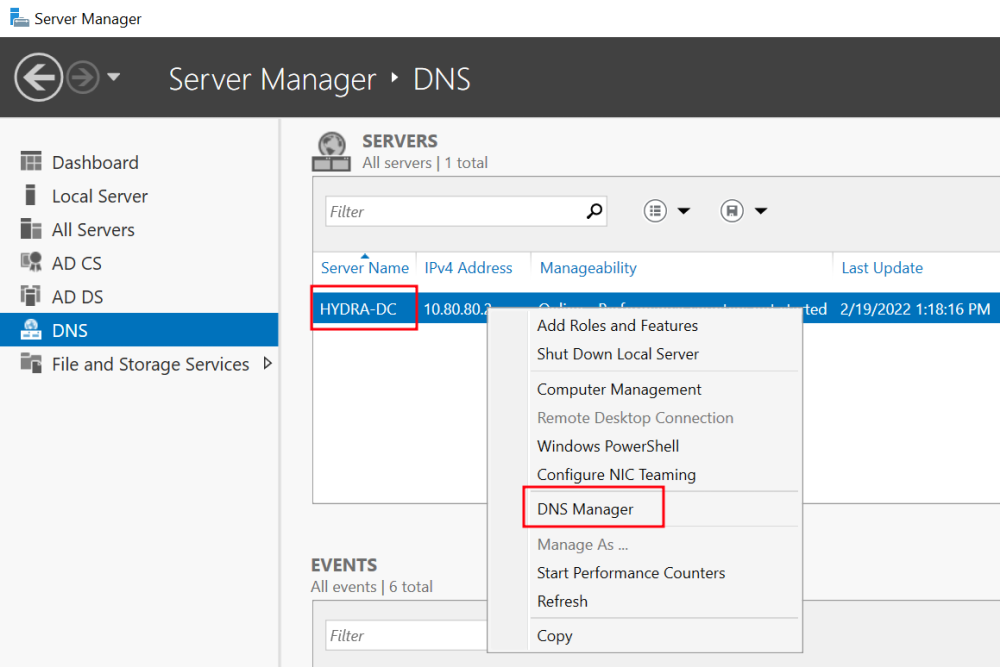

Right-Click DC | DNS Manager AD DNS Manager

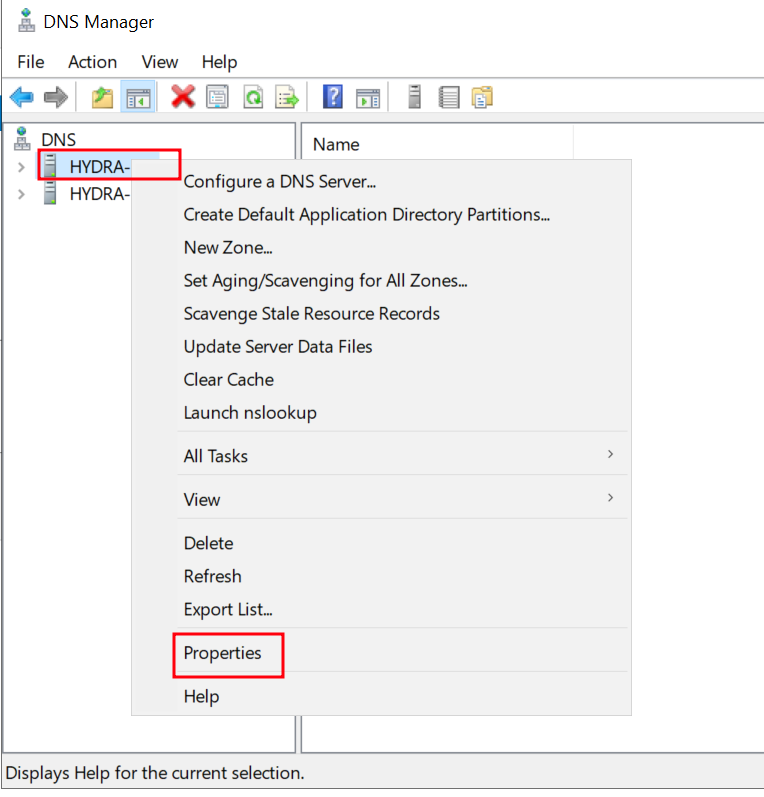

While in DNS Manager | *Right-Click the DC | Properties AD DNS Properties

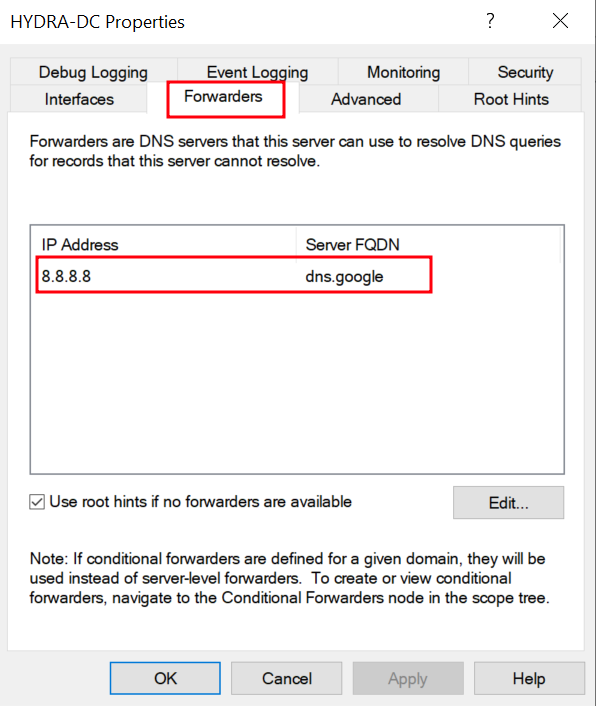

Click Forwarders | Add, OK and Apply AD Google Resolver
