Staging the Network

NOTE: I am assuming you have an existing Proxmox homelab set up, with two virtual switches ie. vmbr0 and vmbr1 (for the subnets). If you do not, please refer to my previous write-ups which describe installing Proxmox, pfSense and configuring the network.

We will be creating a new subnet in our pfSense firewall with the following attributes:

  • VLAN ID Number: 80
  • VLAN Network ID: 10.80.80.1/24
  • Interface Name: AD_LAB
  • DO NOT ENABLE the DHCP server on this VLAN, as the Domain Controller is going to be filling that role

General Steps

  • Add a new VLAN to VMBR1 in Proxmox
  • Add the VLAN to pfSense
  • Configure the interface in pfSense
  • Add firewall rules

Add a new VLAN to VMBR1 in Proxmox

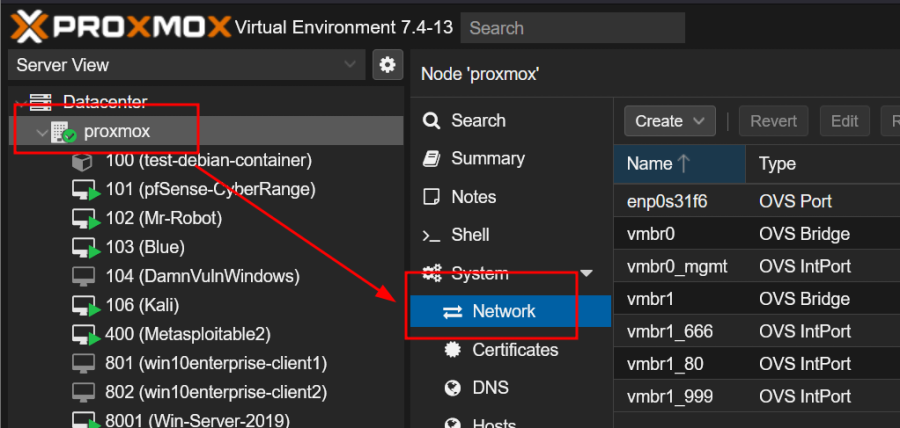

Go to your Proxmox node > Network proxnet

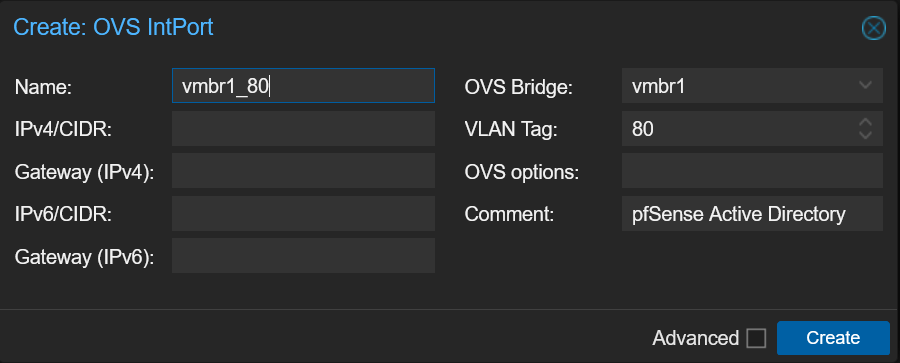

Select vmbr1 and click Create > OVS IntPort

  • Fill out the fields
  • When we attach a container or VM to the (internal) switch vmbr1 and tag it with the VLAN ID of 80, pfSense will route it through the intended VLAN proxintport

Be sure to click Apply Configuration proxapply

Add the VLAN to pfSense

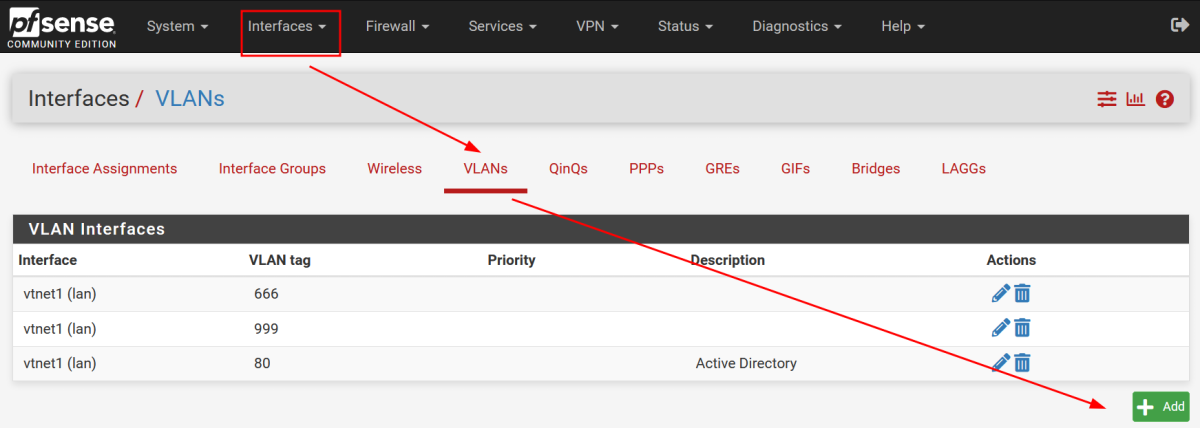

In pfSense, add a new VLAN:

  • Interfaces > Assignments
  • Click on VLANs > Add
  • Screenshot already has VLAN 80 added pfsvlan

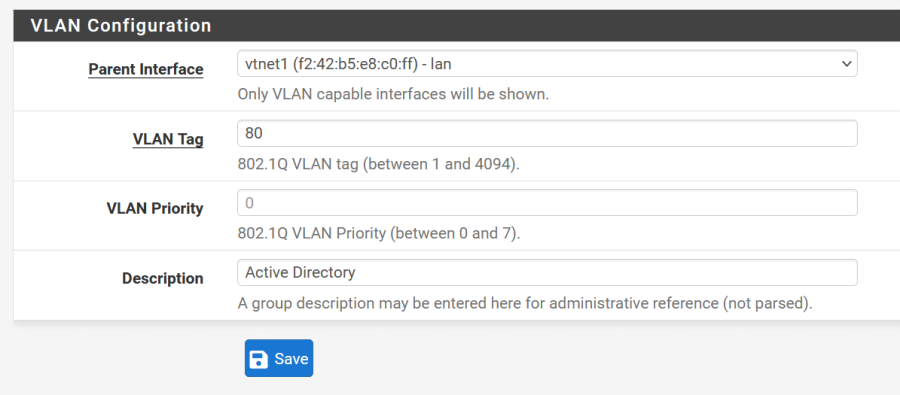

Enter these values:

  • Parent Interface: vtnet1 (internal LAN interface)
  • VLAN Tag: 80 (subnet/sub-interface of vtnet1)
  • VLAN Priority: 0
  • Description Active Directory pfsvalues

Go to Interface Assignments

  • click Add next to the newly added sub-interface

Click Save

You should now see an OPT# interface - click on the OPT# interface name, to configure the interface.

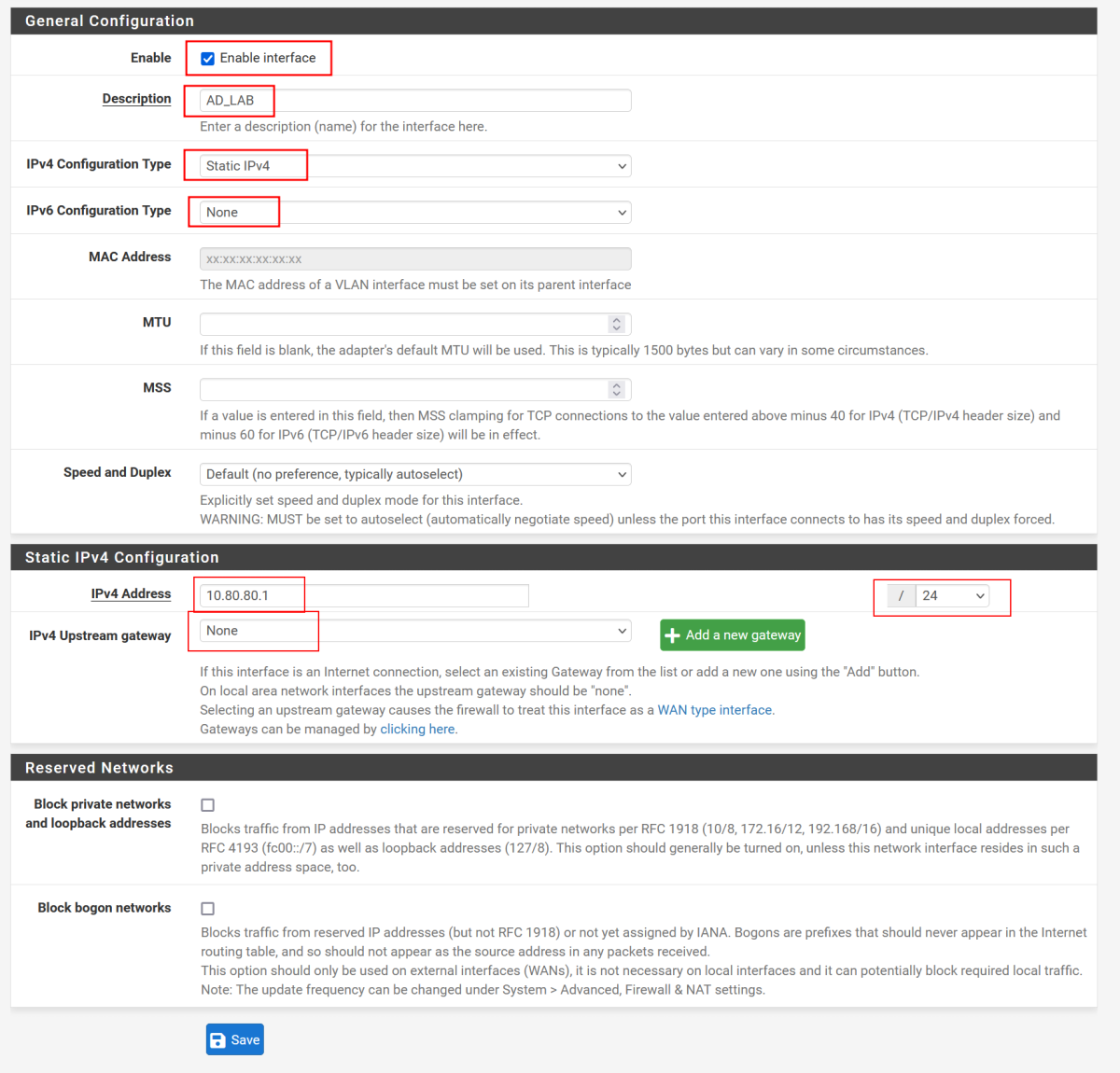

Configure the Interface

  • Enable Interface
  • Description: AD_LAB
  • IPv4 Configuration Type: Static IPv4
  • IPv6 Configuration Type: None
  • IPv4 Address: 10.80.80.1 - /24
  • IPv4 Upstream gateway: None
  • Block bogon networks: Some suggest to enable this, I did not

Click Save and Apply Changes pfsconfig

Add Firewall Rules

NOTE: The firewall rules are different than the rules used for the AD_LAB in our VMware/VirtualBox environment; the Proxmox subnet uses more sophisticated firewall rules to block private addresses. Private addresse were not blocked in our VMware environment.

I copied the firewall rules used for SEC_EGRESS (see previous pfSense writeup) for AD_LAB - with the following rules:

  • Allow Packets to Local Gateway: Packets need to be able to reach the default gateway in order to reach the internet. We did not have this rule in our VMware environment because we will be blocking RFC1918 (private network) addresses here
  • Allow Packets to Kali VM: However, for some attacks to function properly, the attack box should be on the same subnet as the Active Directory Forest
  • Allow Packets to Internet (Non-Private Addresses): Note, this is an Invert Match
  • Block Everything Else

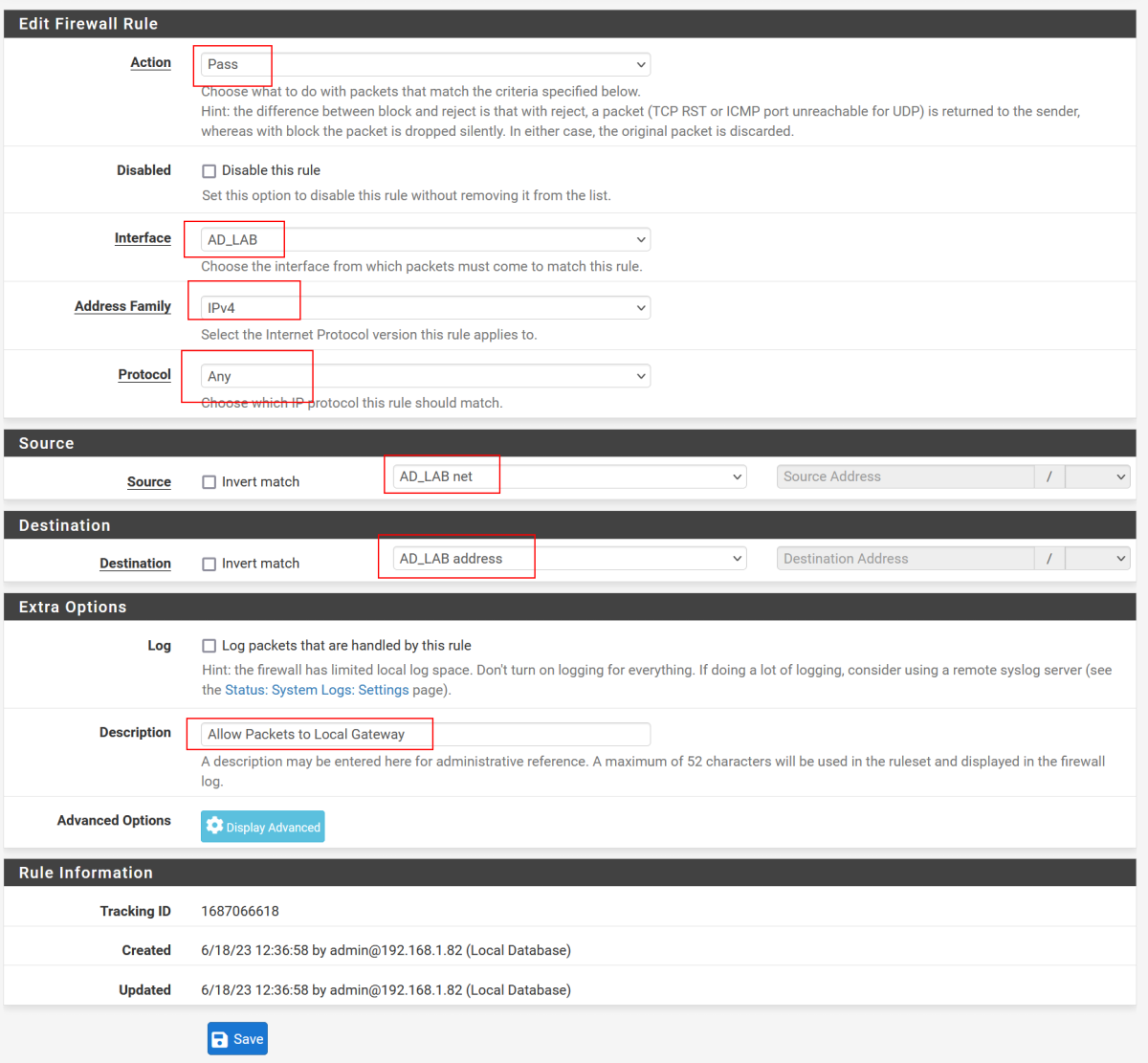

Allow Packets to Local Gateway

pfslocal

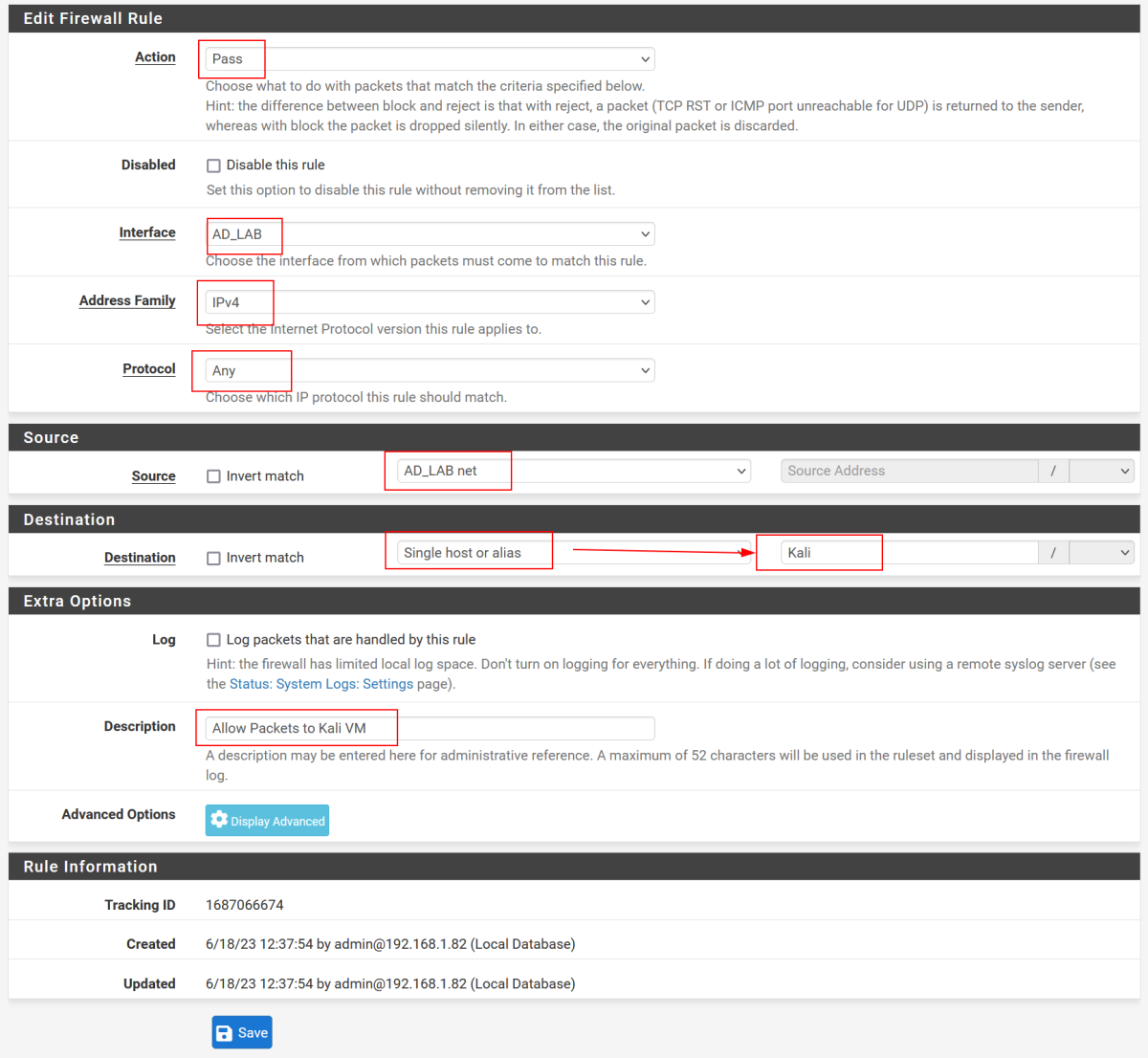

Allow Packets to Kali VM

pfskali

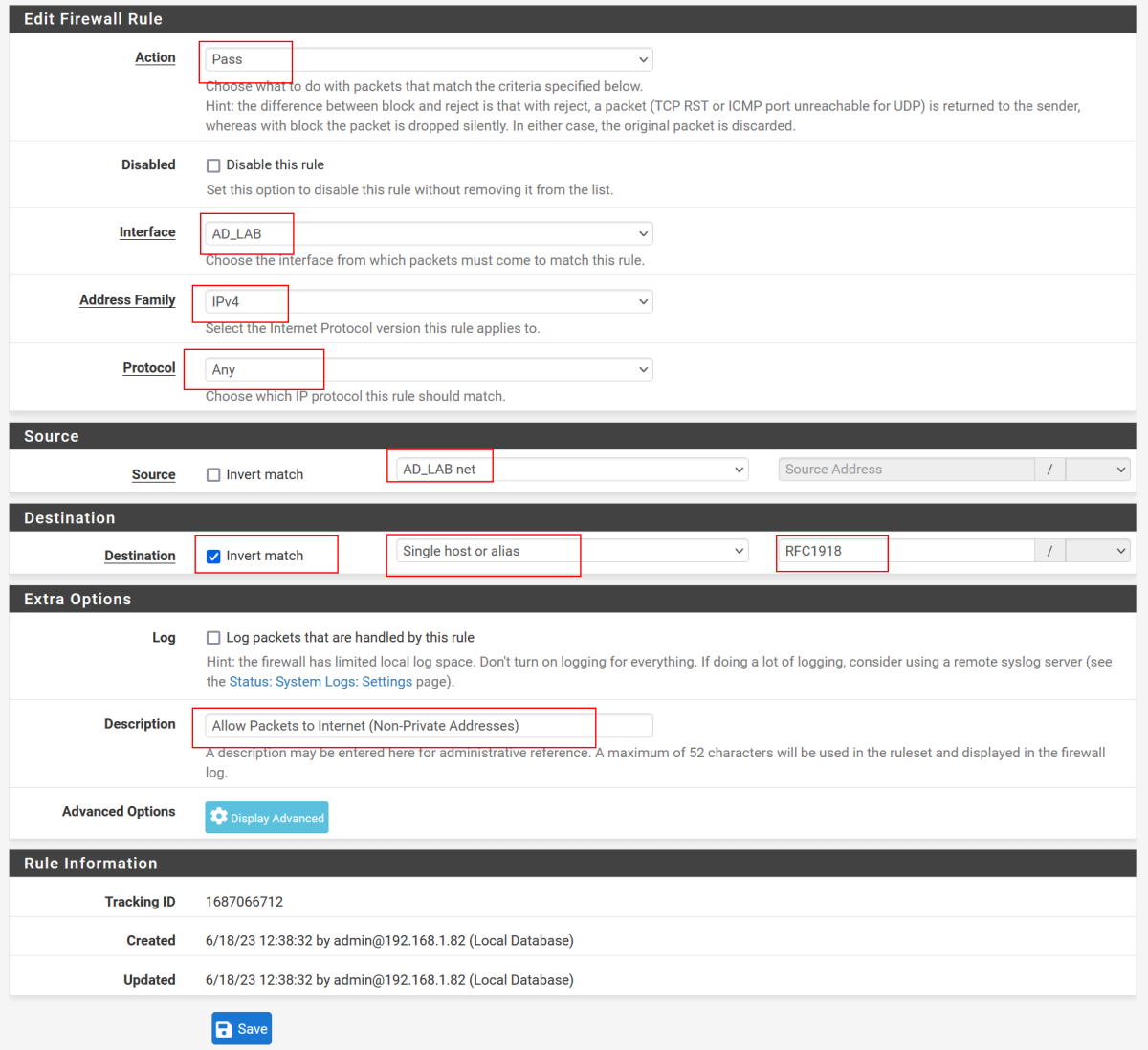

Allow Packets to Internet (Non-Private Addresses)

  • NOTE: Invert Match. We had previously defined RFC1918 as Private Internet Addresses. So we are allowing traffic to non-RFC1918 addresses. pfsinvert

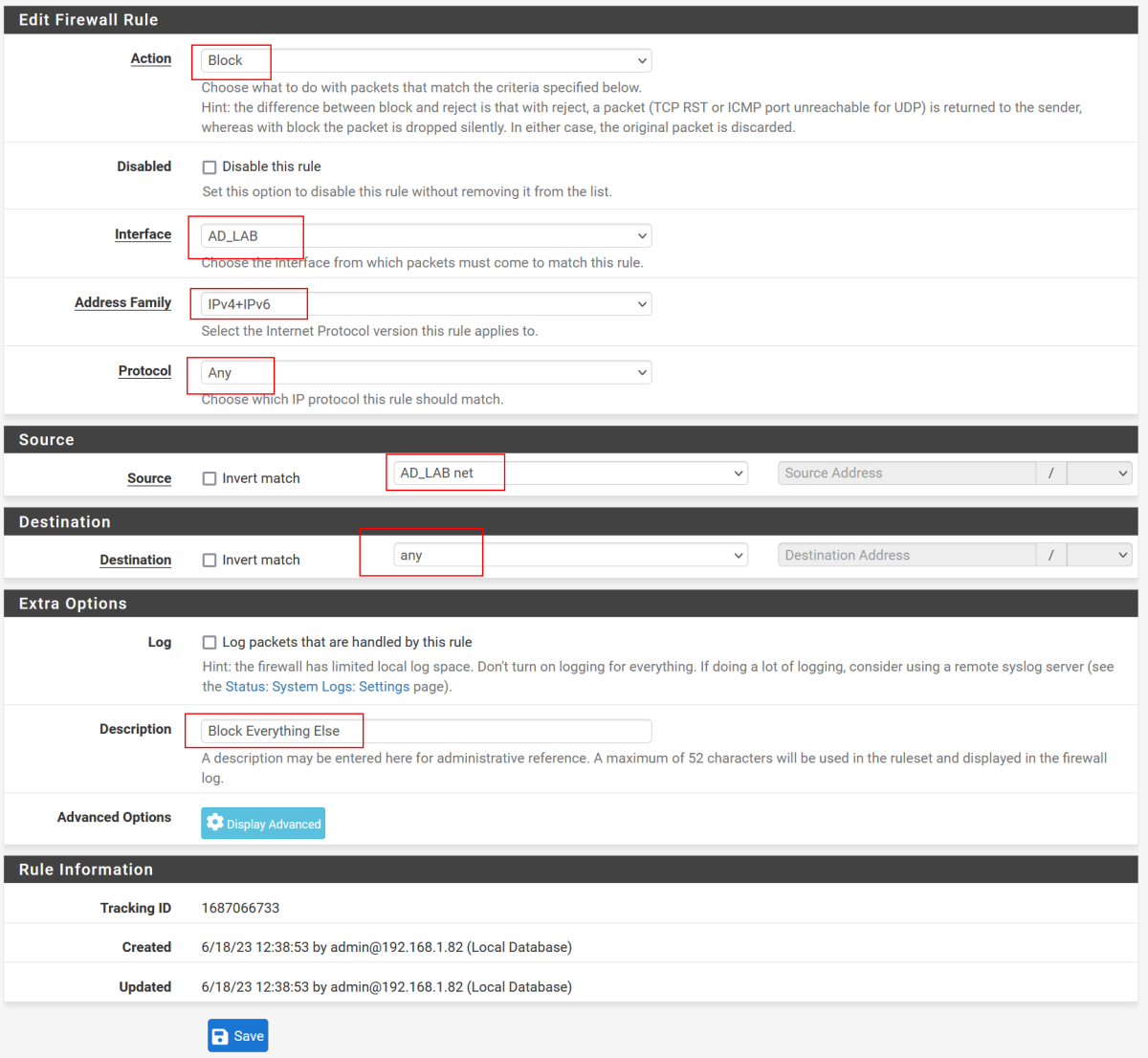

Block Everything Else

pfsblock

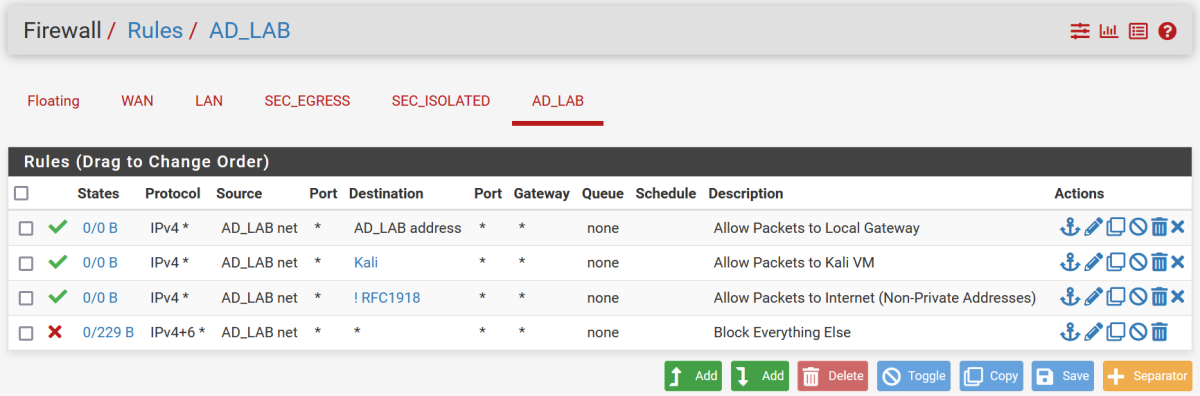

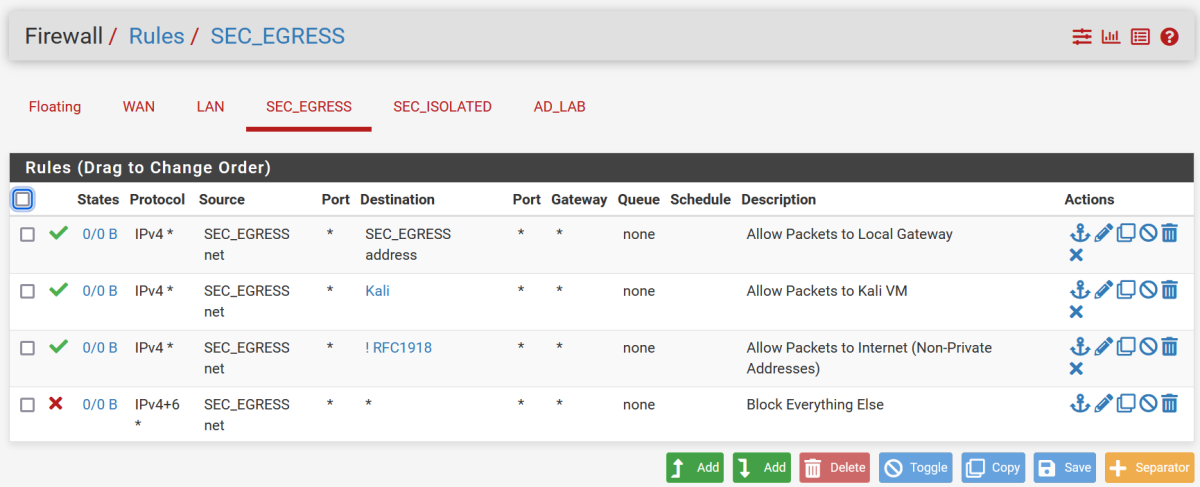

This is the desired end state for SEC_EGRESS and AD_LAB:

pfsendegress pfsendadlab
